Why Is Your PEX Pipe Leaking at the Fitting?

Why Is Your PEX Pipe Leaking at the Fitting and Not the Tubing?

A PEX pipe usually leaks at the fitting because the connection itself, the crimp or clamp ring, the push-to-connect collar, or the expansion joint, failed to seal, not because the tubing wall has a hole. Where the water first shows up tells you which problem you have.

PEX is not one product. The tubing is built to its own ASTM standard, and each connector type, crimp, push-to-connect, or expansion, is built to a separate ASTM spec.

A leak right at a ring, collar, valve body, or manifold points to the connection. A leak along a straight run of tubing, away from any fitting, points to a weak spot in the tubing itself, a different repair than a fitting leak.

A fitting leak is not the same failure as a full pipe burst, though ignoring it can eventually get you there. If water is spraying rather than dripping, see what to do when a pipe bursts first.

For a leak in the PEX tubing itself rather than the fitting, the repair steps are different from what is covered here.

What Should You Do the Moment You Find a PEX Fitting Leaking?

Shut off the water at the fixture or the home's main valve, open a nearby faucet to relieve pressure, and drain the line before you touch the fitting. Then start drying the area right away.

1. Shut off the water. Use the fixture's local shutoff if the leak is close to one, or find your main water shutoff valve and turn it off.
2. Open a nearby faucet to relieve pressure still in the line.
3. Drain the section of pipe below the fitting into a bucket or towel.
4. Contain the water with towels or a pan, then start drying the area. The EPA says wet materials should be dried within 24 to 48 hours or mold growth is likely.
5. Diagnose the fitting once the water is off and the area is dry enough to work in.

Does the Cause and the Fix Change by the Type of PEX Fitting?

Yes. A crimp or clamp ring fails in a different way than a push-to-connect fitting or an expansion joint, so knowing which type is on your line points to the likely cause and the right fix.

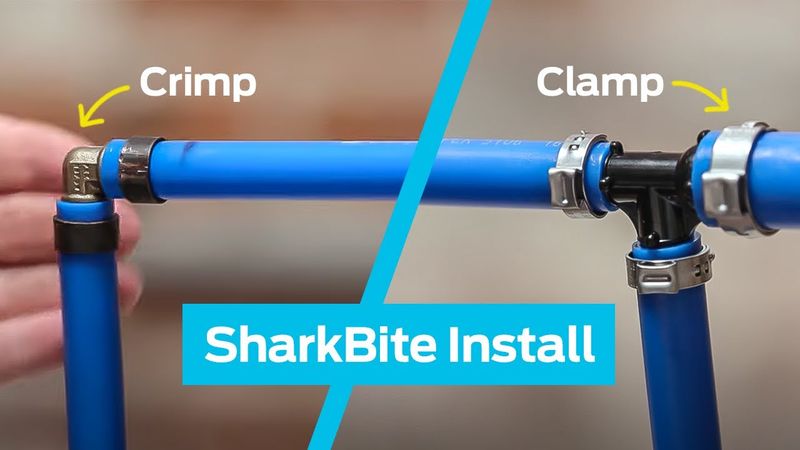

Crimp and clamp (cinch) rings

The ring should sit about 1/8 to 1/4 inch from the fitting's shoulder, with the crimp tool held at 90 degrees and the handles closed fully. A ring installed wrong is invisible until it leaks, and mistakes here are easier to make than with expansion fittings.

Push-to-connect (SharkBite-style) fittings

The number one cause of a new push-to-connect leak is the pipe not pushed in far enough past the O-ring. An unsquare cut, scratches or debris on the pipe surface, or a missing PEX support insert also cause leaks; PEX tubing alone is not rigid enough to hold the O-ring's shape.

Expansion (ProPEX/Uponor) fittings

Expansion fittings are less prone to installation mistakes than crimp rings, but a leak still means the ring did not fully return to size around the fitting after it was expanded. Reconnecting means cutting out the joint and redoing it with the expansion tool.

How Do You Fix a Leaking PEX Fitting, Step by Step?

In almost every case, you cut out the failed fitting and the last inch of tubing and install a new one. A leaking crimp or clamp fitting cannot just be re-tightened once it has actually failed.

Before you start, gather the right tools for your fitting type. Using the wrong tool is its own common cause of a repeat leak.

• PEX cutter, for a straight, square cut
• Crimp tool, clamp (cinch) tool, or expansion tool matched to your fitting brand
• Go/No-Go gauge to check a crimp or clamp ring
• Deburring tool
• New fitting and ring, sized and rated to match your tubing

1. Confirm the water is off and the line is drained.
2. Cut out the failed fitting and about an inch of tubing on each side with a PEX cutter, keeping the cut square.
3. Deburr the cut ends.
4. Slide a new ring onto the tubing for a crimp or clamp fitting, then insert the new fitting.
5. Crimp, clamp, or expand the connection per the tool's instructions, holding a crimp tool at 90 degrees to the fitting.
6. Check the finished joint with a Go/No-Go gauge on a crimp or clamp fitting.
7. Restore water slowly and check the joint under pressure before closing up any wall or floor.

This is the same cut-and-reconnect approach used for a general pipe repair, adapted to PEX ring and expansion tools.

Why Do Brass PEX Fittings Corrode or Fail Years Later?

Yes, in some cases. A corrosion process called dezincification can make certain brass PEX crimp fittings leak years after a correct installation, and older fittings from specific manufacturers were the subject of real class-action settlements over this exact problem.

The ASTM pressure and temperature rating your fitting should meet

Brass fittings built to ASTM F1807 and plastic-bodied, poly-alloy fittings built to ASTM F2159 are both rated for 100 psi and up to 180 degrees F. A fitting leaking under normal household pressure and temperature is failing early, not being overloaded, no matter which material it is made from.

The Zurn and Kitec brass fitting corrosion settlements

Zurn brass F1807 crimp fittings stamped Qpex, QestPEX, or Qicksert, sold roughly between 1996 and 2010, were the subject of a $20 million class-action settlement over corrosion the lawsuit said caused the fittings to leak. Zurn denied wrongdoing but agreed to the settlement.

A separate 2021 investigation into Zurn's plastic, non-brass fittings closed with no lawsuit filed, so this corrosion history applies to older Zurn brass fittings specifically, not current plastic PEX fittings.

Kitec fittings, a PEX-aluminum-PEX composite pipe and not standard PEX, were used in some homes built between 1995 and 2007. They were reported to be the subject of a roughly $90 million Nevada class-action settlement over the same kind of brass corrosion; treat that figure as reported, not independently confirmed.

Repeated freeze-thaw cycles can add mechanical stress to a fitting joint over the years, on top of any corrosion. See how to prevent frozen pipes for cold-weather prevention.

How long a properly installed fitting should last

PEX tubing commonly carries a 25-year manufacturer warranty, and the industry-reported real-world service life is 40 to 50 years when installed correctly. A fitting leaking within the first few years points to an install or product issue, not normal wear.

Is a Leaking Radiant Heating PEX Fitting Different?

Yes. A fitting leaking inside a radiant floor, baseboard loop, or slab is higher stakes because you usually cannot see or reach it. This is one case where calling a professional early is the right call even if you could DIY a similar fitting elsewhere.

The same fitting types, causes, and ASTM ratings above still apply, but a radiant loop is often embedded in concrete or behind a finished wall or floor. Cutting into structure to find and fix a hidden fitting is a job for a licensed plumber, similar to diagnosing a leaking pipe under a slab.

If you can access the fitting without cutting into structure, such as one exposed in a mechanical room or unfinished basement, the repair steps above still apply.

Should You Repair a Leaking PEX Fitting Yourself, or Call a Licensed Plumber?

DIY is realistic for an accessible fitting on a visible run if you have the correct crimp, clamp, or expansion tool for that exact fitting plus a Go/No-Go gauge to check your work. Call a licensed plumber for anything inside a wall, under a slab, part of a radiant loop, or on an older brass fitting you cannot identify.

A DIY repair typically costs far less than a plumber visit once you own the tools, though the tools themselves are an upfront cost. Homeowners insurance often covers sudden water damage from a failed fitting, but may treat a slow, long-term leak as excluded maintenance damage. This is general information; check your own policy.

If the leak already caused standing water or damaged materials, a water damage repair contractor can handle cleanup and drying while a plumber handles the fitting itself.

How Do You Keep a Repaired PEX Fitting From Leaking Again?

Use the manufacturer-matched tool and ring or insert for that exact fitting, and check the crimp or clamp with a Go/No-Go gauge before restoring full water pressure. Confirm the fitting is rated for your tubing's PEX type and size.

• Match the fitting to your tubing's PEX type, A, B, or C, and size; a fitting rated for the wrong type or size is a common, avoidable cause of a new leak.
• Use the tool brand matched to the fitting brand; mixing brands of crimp tools and rings can leave a ring under- or over-crimped.
• Check every new crimp or clamp with a Go/No-Go gauge before you close up a wall or floor.
• Keep the fitting accessible where possible, such as behind an access panel, instead of burying it completely.
• Note the repair date and fitting type somewhere you will find it again, in case the joint needs attention later.
